Featured Vehicle - February 2008 - 2004 Chrysler Crossfire

Make   Chrysler

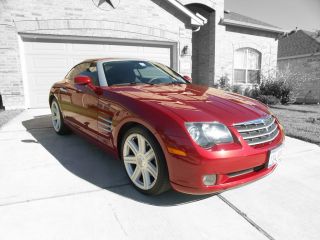

Model * See note regarding copyright of this photograph



  Crossfire
Vehicle Model Year   2004
Scan Tool In Use   OBDKey Bluetooth
Extra Vehicle Information
  Engine 3200cc V6
Vehicle OBD-II Compliance OBD II (California ARB)

Technical information : Mode 1, PID 1C response: 01
Protocol Detected ISO 14230-4 (KWP fast init)
Scan Tool Connector Location

  Inside vehicle* See note regarding copyright of this photograph
Sensors Reporting Live Data

Monitor status since DTCs cleared

Fuel system 1 and 2 status

Calculated LOAD Value

Engine Coolant Temperature

Short Term Fuel Trim - Bank 1

Long Term Fuel Trim - Bank 1

Short Term Fuel Trim - Bank 2

Long Term Fuel Trim - Bank 2

Intake Manifold Absolute Pressure

Engine RPM

Vehicle Speed Sensor

Ignition Timing Advance for #1 Cylinder

Intake Air Temperature

Air Flow Rate from Mass Air Flow Sensor

Absolute Throttle Position

Commanded Secondary Air Status

Location of Oxygen Sensors

Bank 1 - Sensor 1/Bank 1 - Sensor 1 Oxygen Sensor Output Voltage / Short Term Fuel Trim

Bank 1 - Sensor 2/Bank 1 - Sensor 2 Oxygen Sensor Output Voltage / Short Term Fuel Trim

Bank 2 - Sensor 1/Bank 3 - Sensor 1 Oxygen Sensor Output Voltage / Short Term Fuel Trim

Bank 2 - Sensor 2/Bank 3 - Sensor 2 Oxygen Sensor Output Voltage / Short Term Fuel Trim

OBD requirements to which vehicle is designed

Distance Travelled While MIL is Activated

Technical information : Mode 1, PID Support response: BFBFF991
Supported On Board Tests

Misfire Monitoring (Completed)

Fuel System Monitoring (Completed)

Comprehensive Component Monitoring (Completed)

Catalyst Monitoring (Completed)

Evaporative System Monitoring (Completed)

Secondary Air System Monitoring (Completed)

Oxygen Sensor Monitoring (Completed)

Oxygen Sensor Heater Monitoring (Completed)

EGR System Monitoring (Completed)

Technical information : Mode 1, PID 01 response: 0007ED00
MIL Status MIL Off

Technical information : Mode 1, PID 01 response: 0007ED00
Stored Faults Detected None

Technical information : Mode 3 response: No data
Pending Faults Detected None

Technical information : No mode 7 response with codes


Photographs and Data Source:

* Original photographs used on this web page are reproduced here with permission from the vehicle's owner (Daniel DanielNTX@hotmail.com])
If you are interested in the Chrysler Crossfire vehicle, why not visit or join www.CrossfireForums.org and the Central Texas Crossfires (CTC) car club.
